River flooding tutorial

The objectif of this tutorial is to explain how to use the code BG_Flood to model river flooding. As the code allows rain on grid, we will look at pluvial and fluvial flooding.

This testcase aims to broadly reproduce the flooding event that occured from the 16 to the 18 of July 2021 (a 1 in 50 year flood event). During this event, the Buller river, passing through the town of Westport, on the West Coast of the South Island of Aotearoa New Zealand, get out of its primary bed and flooded the Westport area.

Prerequisite

Before begining this tutoral, the user is expected to have downloaded the windows executable (last release on github) or compiled the sources (version > 0.8) of the BG_flood code on linux.

During this tutorial, we will build, step by step, a test case. A relatively simple testcase will be build first. Then an example with more complex rain, tidal boundaries inputs will also be shared and explained.

Param file

The interface with BG_flood software is done using only a text file: BG_param.txt (This is the name of the input parameter file by defauls, an other name can be use as first variable when lauching BG_Flood.)

This file consists in a list of key words and inputs, separated by a "=" sign. For a full list of the available key words and a further description of this file, please refer to the [parameter list]{../ParametersList-py.md} and the [manual]{../Manual.md}.

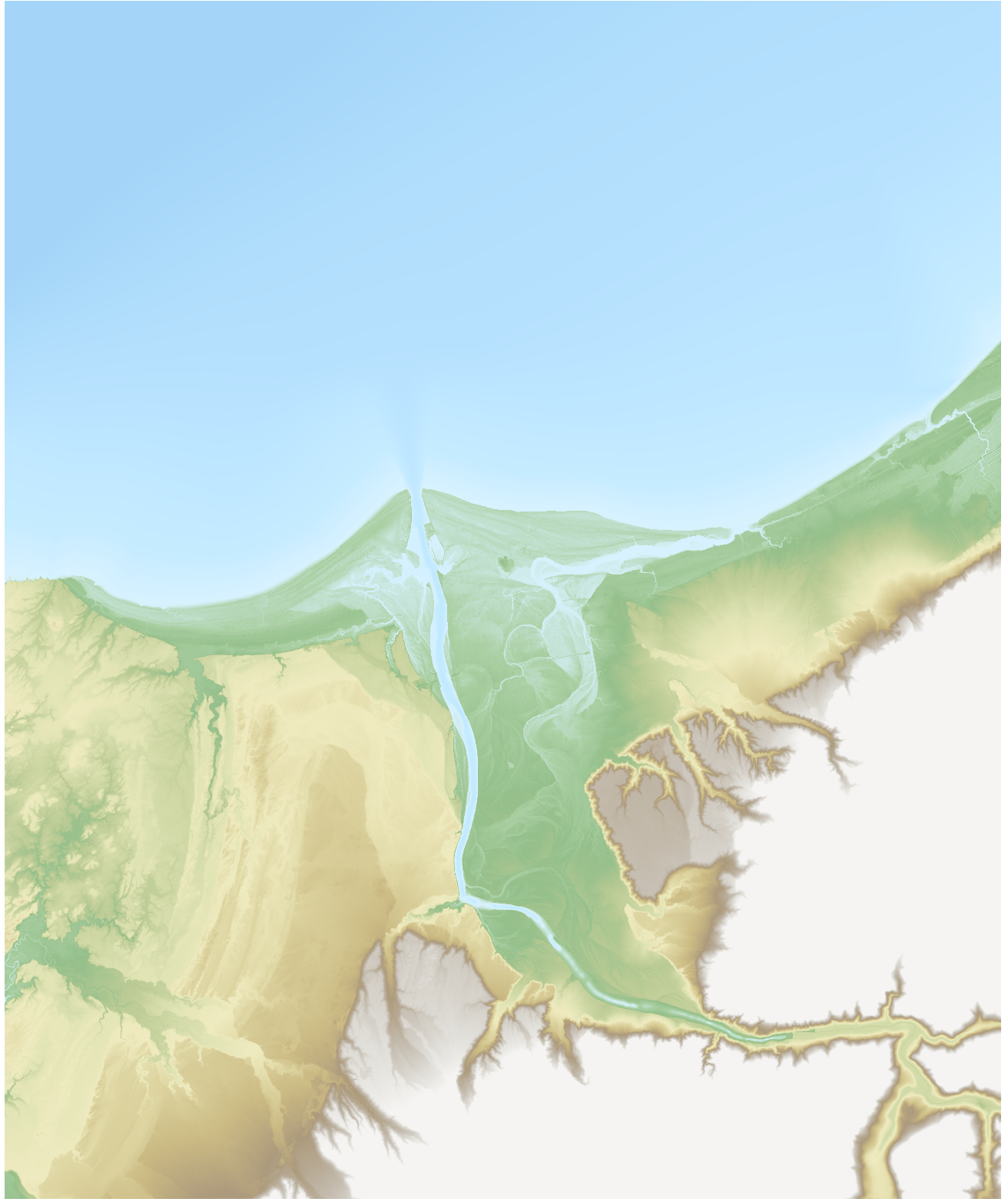

Preparation of the topography/bathymetry (DEM: Digital Elevation Model)

The DEM, topography or bathymetry file is the only necessary file to be added to BG_param file to run the model.

DEM = Wesport_DEM_8m.nc?z;

Note

Different formats can be used for this file ( ASCII: .asc or NetCDF .nc principally). As Netcdf files can contain different variables, the "?" follows by the name of the variable is needed.

Without further information, the code will run will default values for physical parameters and initialisation, Neumann boundaries and no external forcing:

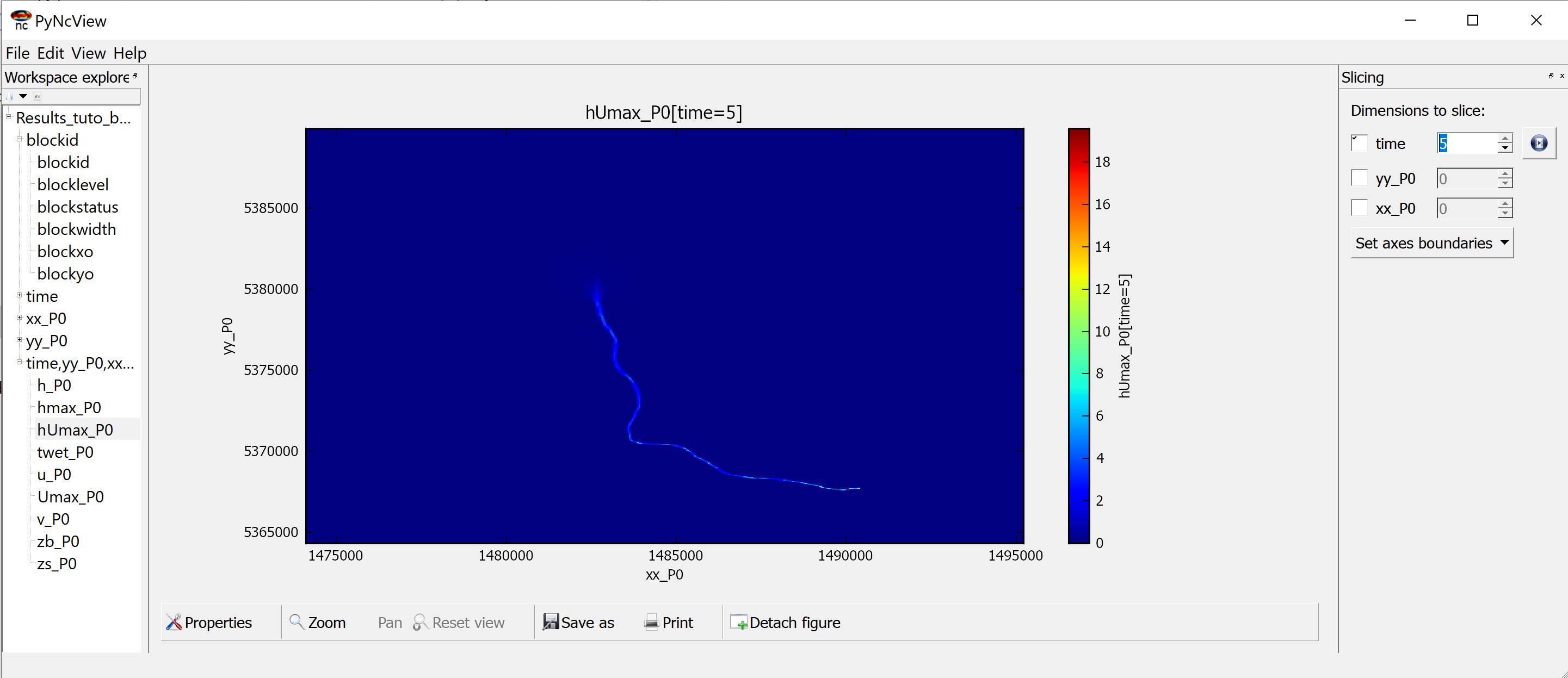

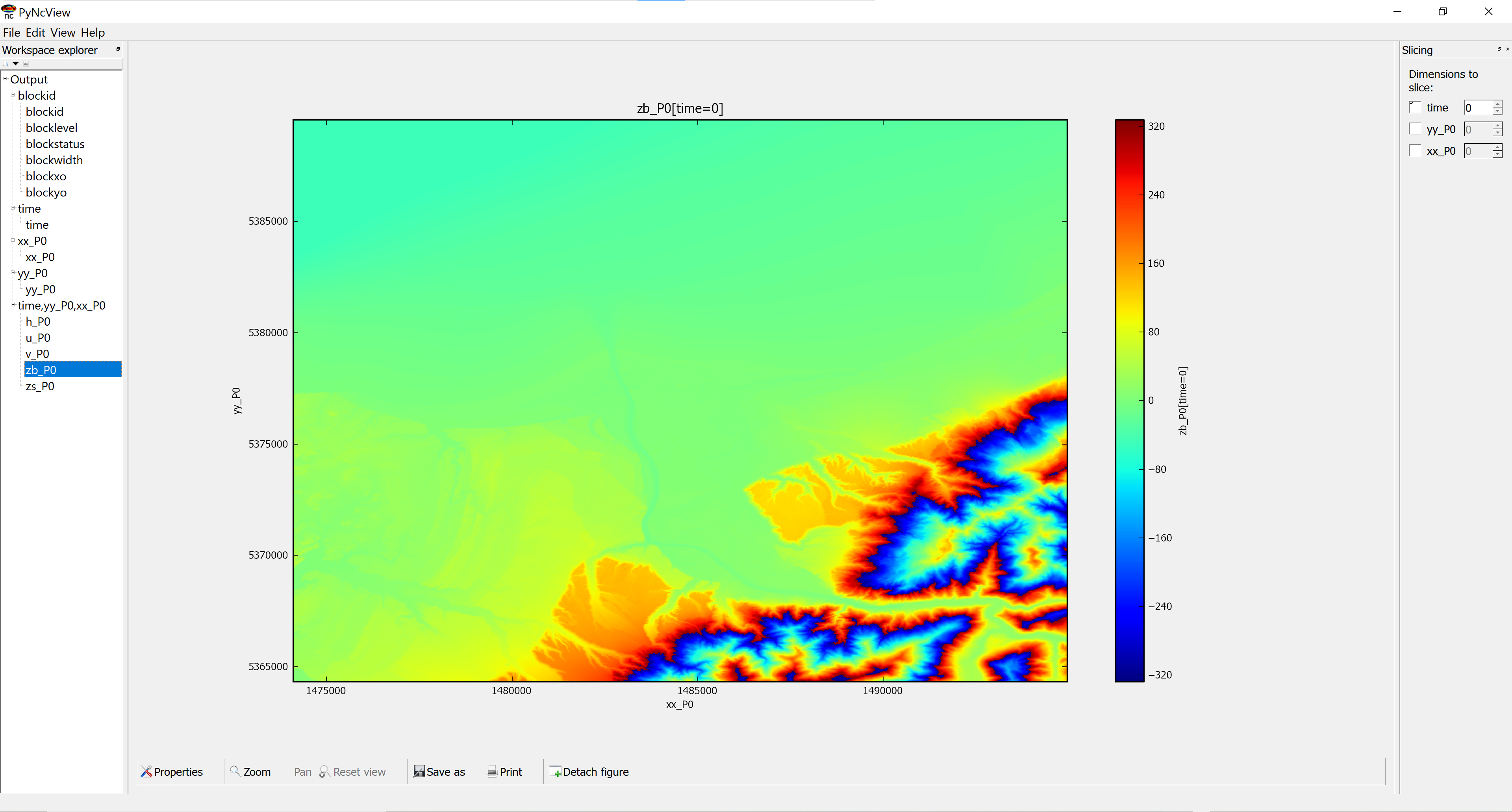

A result files: output.nc is created (here opened with the [PyNcView]{https://pyncview.software.informer.com/})

It contains 2D spatial fields saved regularly in time. It details the blocs information:

blockid: block index
blocklevel: level of refinement for each block
blockstatus: Is the block active ?
blockwidth: number of cells in x or y direction in the block (not considering halo cells for computational purpose only)
blockxo/blockyo: coordinate of the bottom left corner of he block

the time 1D variables or coordinates:

time: time vector in second or real time
xx/yy axis: spacial coordinate in m (by default)

and the by default outputs:

h : the water depth in m
u : the veloctity vector component in the x direction
v: the velocity vector component in the y direction
zb: the bottom/ground elevation (m from vertical projection reference)
zs: the surface water elevation (m from vertical projection reference)

(see manual for further description of the variables).

Note

In BG_Flood, the memory is organised in blocked for an optimal parallelisation on GPU. All the cells on a block will share some status and parameter such as the level of refinement (or cell size) and the active status.

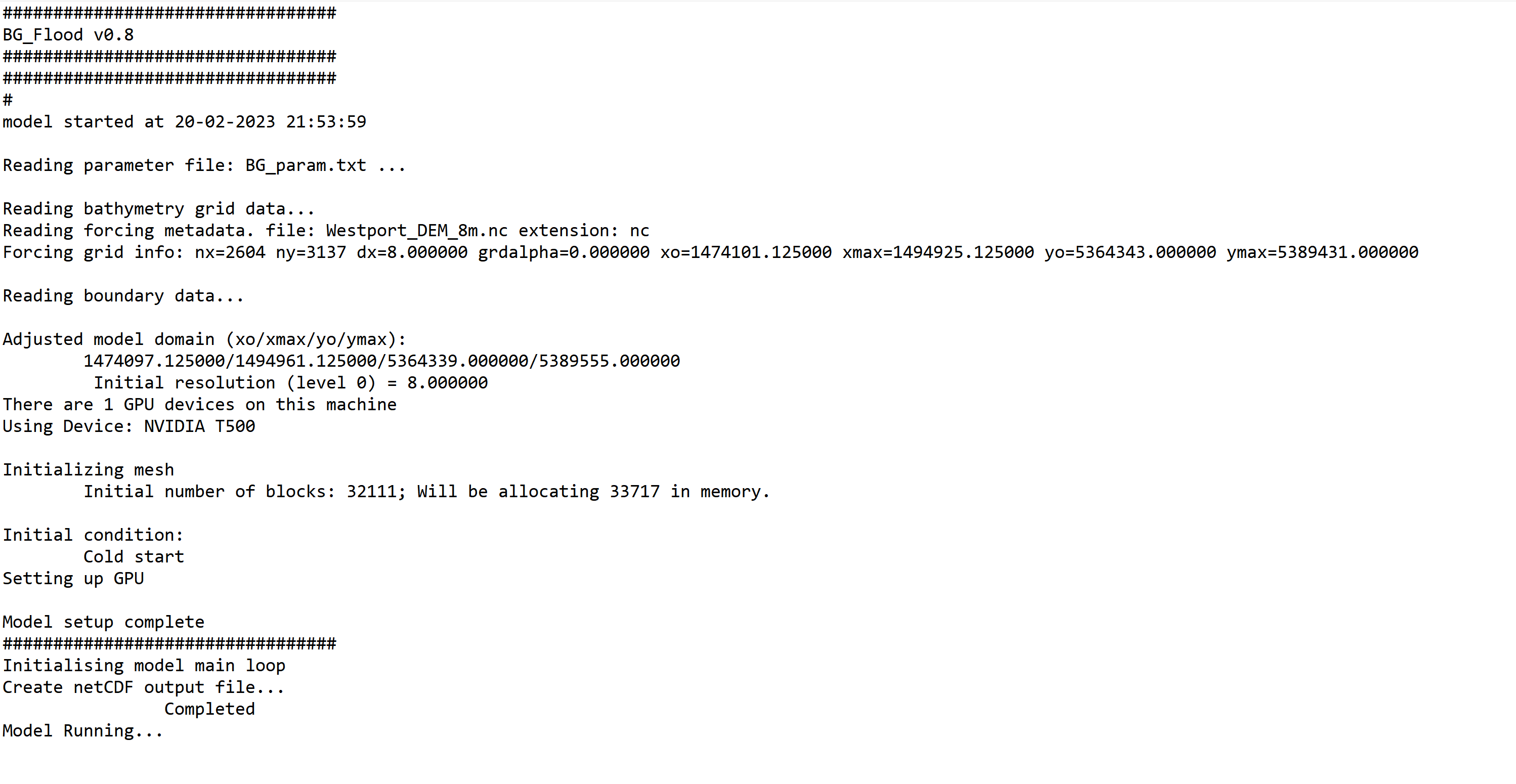

A log file: BG_log.txt (very similaire to the shell outputs) is also created to keep the terminal output information:

Basic fluvial flooding set-up

River discharge

The river are (at this stage) forced by a vertical discharge on a user defined rectagular area:

river = river_discharge_TeKuha2.txt,1490249,1490427,5367640,5367805;

where the four final numbers are: $x_1$, $x_2$, $y_1$, $y_2$, to define the area for the vertical discharge and a text file containing the time-serie of the discharge (first column: time ($s$) from reference time, second column: river discharge in $m^3s^{-1}$).

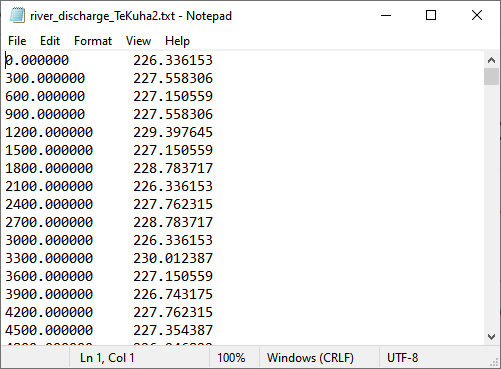

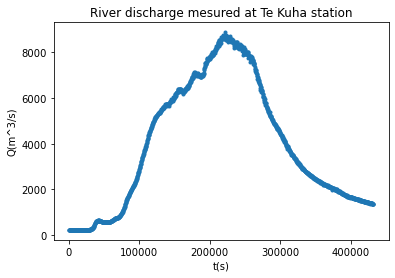

This file has been generated from an observed hydrograph, with data saved every $5$min, in second from the begining of the simulation (or event):

For each new river, just add the a similar river input line in the parameter file.

Timekeeping parameters

In this code, the time is defined in second, relative to some reference or the start of the simulation by default.

The end of the simulation is prescribed in second as :

endtime = 21600;

The time steps can't be defined by the used, it will be automatically computed as the more restrictive one in the domain by the solver, using the prescribe CFL (Current Friedrich Limiter) value, $CFL=0.5000$ by default.

The simulation begin, by default at $t=0(s)$, but this can modify using "totaltime":

totaltime = 3600;

to begin one hour after the reference time (used in the forcings for example).

Note

The code was initially designed to consider time only through duration in second. We can now use dates to defined time in the forcings and the param file, including a time reference.

Outputs

There is two types of outputs:

map outputs of 2D variables regularly through time
time-serie (TS) output of basic values, at a chosen point position, at each time step.

Map outputs

By default, there is only a map output at the begining and end of the simulation.

The map output can be modify by:

defining a timestep (in s) for these outputs:
```
outputtimestep = 3600.0;
```
changing the set of variables in the output file (from the list given in the manual)
```
outvars = zs,h,u,v,zb,hmax,Umax,hUmax,twet;
```
The "max" variables will be the maximum value during the whole simulation. To reset it between the outputs, see the resetmax variable. There is also special variables for risk assesment after inundation (Umax, hmax, hUmax, twet)
changing the name of the output file:
```
outfile = Results_tuto_basicRun.nc;
```
saving the output as float (variables are saved as short integer by default.):
```
smallnc = 0;
```

Time-Serie outputs

For each TS output needed, a line with the destination file and the postition is needed:

TSnodesout=Offshore.txt,1482120,53814890;

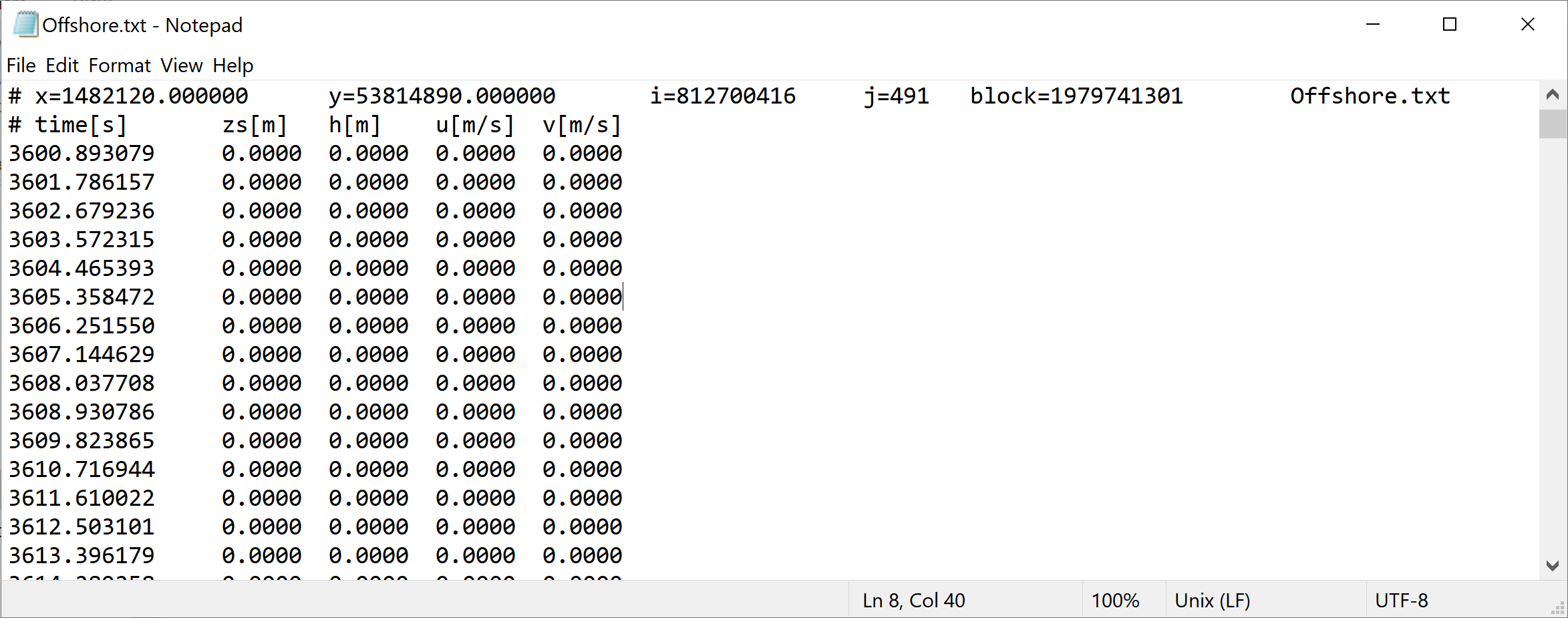

corresponding to TSnodesout=filename.txt,x_p,y_p; The file contains 5 colums $(t, zs, h, u,v)$ with the value at the nearest grid point (to the position defined by the user).

Resolution

For a first test, we will modify the resolution and set it to 40m to decrease the computational time:

dx=40;

Basic fluvial innundation results

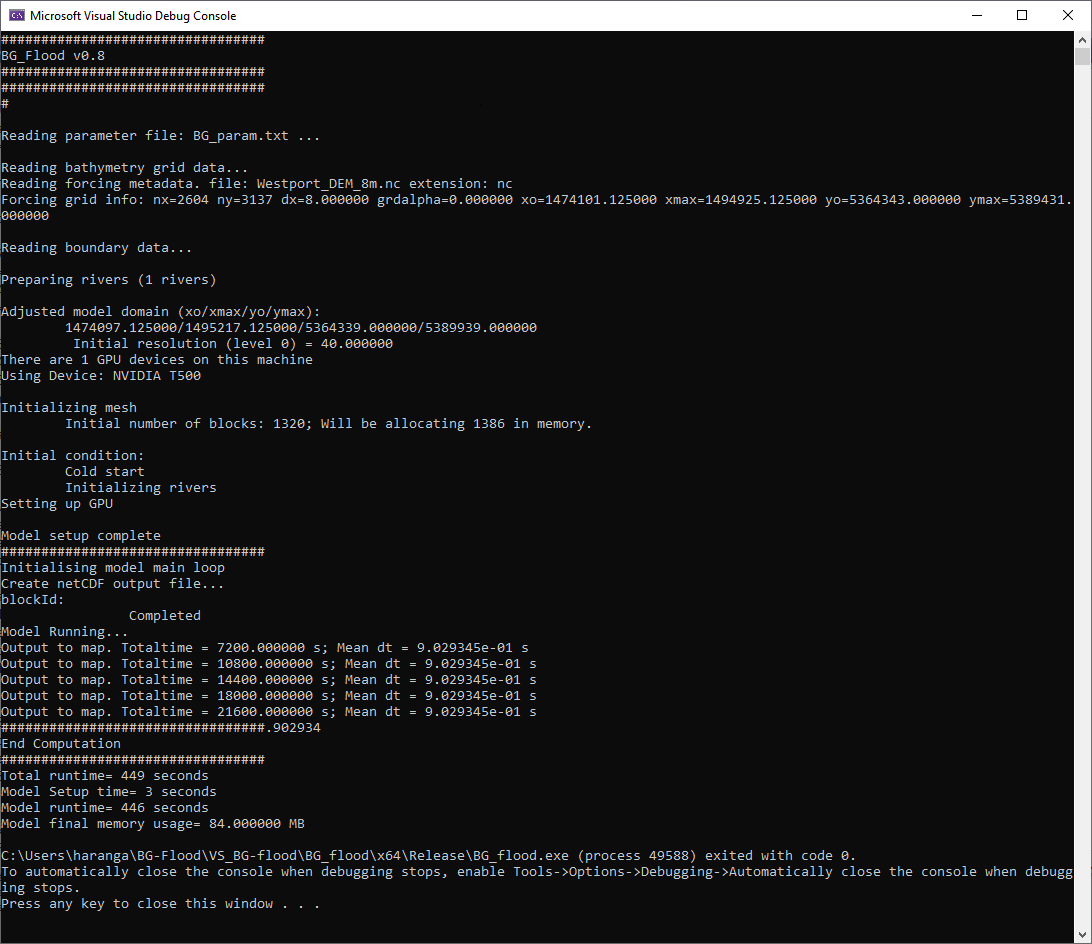

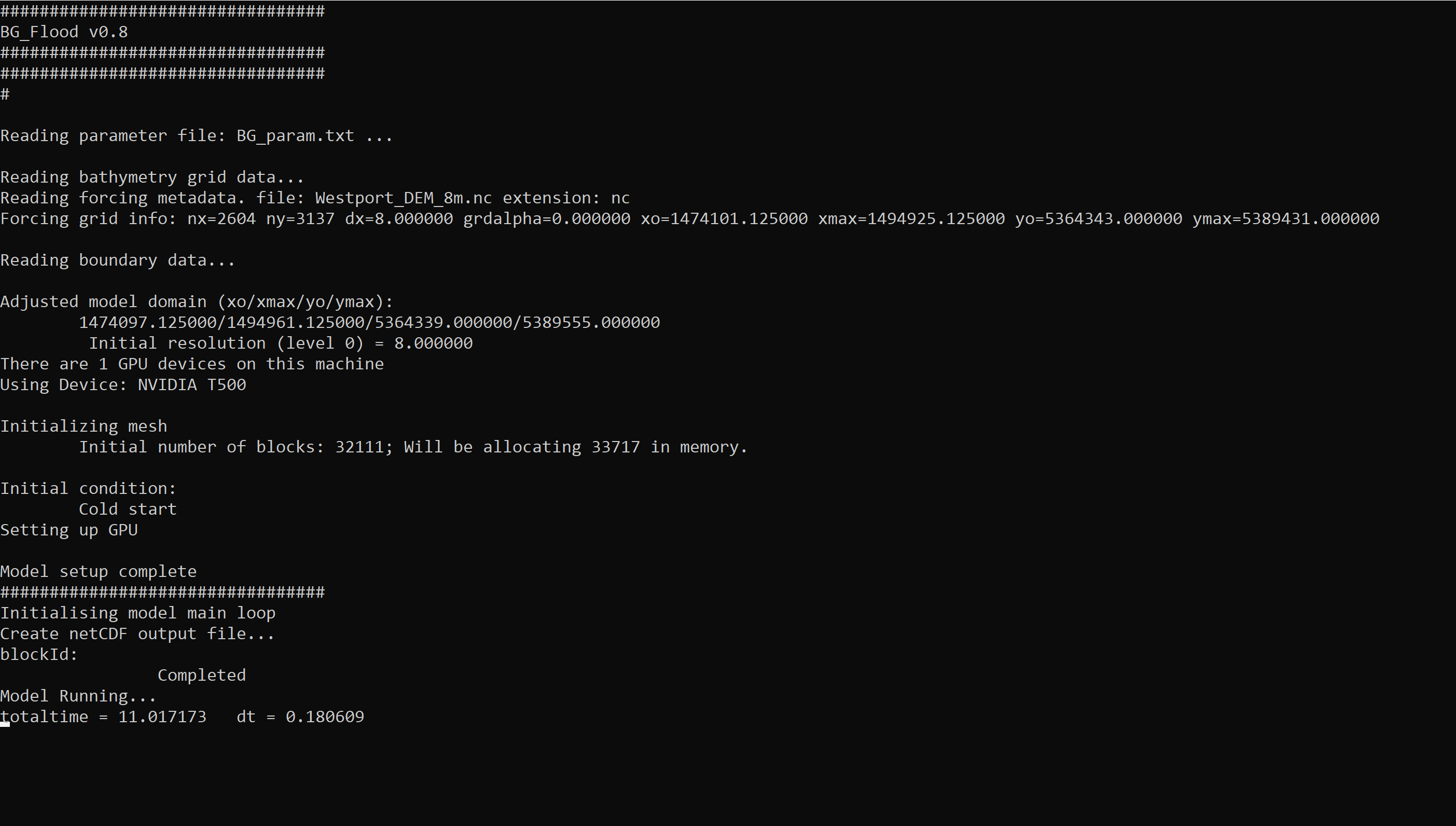

This the shell output: It shows that 1 river has been added to the model, and also the time progression with 5 map outputs (in addition to the initial time step).

In the outputs, we get the different fields requested, for 6 different times.

The Time-Serie output is:

Completing the set-up

Adding boundary conditions

Boundaries' conditions are refered by their position, using 'top/bottom/right/left' keywords. They are associated to a boundary type ( 0:wall; 1: Neumann (Default); 2:Dirichlet (zs); 3: abs1d) and possibly a file containing a time serie. In this case, the file name is placed before the type, coma-separated.

In this case, we will use tide boundaries at when at least a part of the boundary is open on the sea, i.e. for the top, left and right boundaries. At the bottom, we will conserve the default value: 1.

left = tide_westport.txt,2;
right = tide_westport.txt,2;
top = tide_westport.txt,2;

In this case, as the boundaries are relatively small compared to the time wave length, we will used the same value along all the boundaries. We will then have only two columns in the file: Time and one elevation. tide_file

tide_westport.txt

0.000000    0.714714
600.000000  0.794714
1200.000000     0.864714
1800.000000     0.934714
2400.000000     0.994714
3000.000000     1.054714
3600.000000     1.104714
4200.000000     1.144714
4800.000000     1.174714
5400.000000     1.194714
6000.000000     1.214714
6600.000000     1.214714
7200.000000     1.214714
7800.000000     1.204714
8400.000000     1.184714
          ...
336600.000000   -0.635286
337200.000000   -0.705286
337800.000000   -0.765286
338400.000000   -0.825286
339000.000000   -0.875286
339600.000000   -0.915286
340200.000000   -0.955286

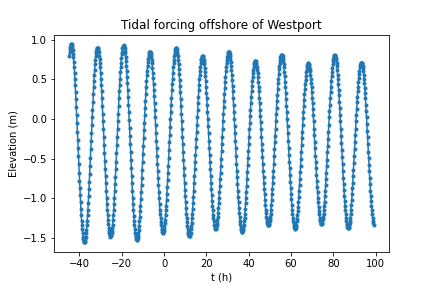

They correspond to a classic time Serie observed offshore of the river mouth.

Note

If more values are added to the file (more columns), they will be regularly spread along the boundary and the forcing will be linearly interpolated between these values.

Bottom friction

Different models from bottom friction are available. By default, the model used is -1 corresponding to a Manning model. Here, we will use the model 1 corresponding to a roughness length (see manual for more information on the Bottom friction models). The associated field (ASC or netCDF) or value must be enter with the key word

frictionmodel=1;
cf=z0_100423_rec3.asc; #cf=0.01;  #If using a uniform value

Warning

The model allows a roughness heigh or manning number map smaller than the computational domain and will extrapolate outside of the map.

Initialisation

By default, the model is initialised by a plane water surface located at $z=0.0$.

This water level can be modify, depending of the local mean sea level and the vertical projection used to create the DEM, using:

zsinit=-1.39; #in metre

The model can also be initialised using a restart/hot start. A file containing a least the files zb, h or zs, u and v must be provided, with the steps (and no the time value) to use for the restart.

hotstartfile = output_4.nc;
hotstep=5;

Warning

the code can be restarted only from an uniform grid (and not from results with multi-level of resolutions).

Model controls

Some variables can be used to adjust the model (see Manual for more details):

run on CPU (or choose a GPU to run on):
```
gpudevice=0;
```
By default, the code will detect if there is a suitable GPU on the machine.
Double precision instead of a float precision during the computation:
```
doubleprecision = 1;
```
Minmod limiter parameter (to tune momentum dissipation $\in [1,2]$)
```
theta=1.3; #default value=1.3
```
Minimum heigh to concidere a cell wet (m)
```
eps = 0.00010000; #default=0.0001
```

... Adding the rain

The model allows rain on grid forcing to model pluvial inundations.

Rain forcing

A rain intensity in $mm.h^{-1}$, time and space varying can be forced in the model.

The rain can be forced with a time serie (with uniform values on the domain) or a netCDF file if a spacial file is available:

Time serie forcing:
```
rainfall=rain_westport.txt
```

Spacial file forcing:

rainfile=VCSN_buller_202107_dailynzcsmcov_disaggdaily_500m_nztm_clipped.nc?depth;

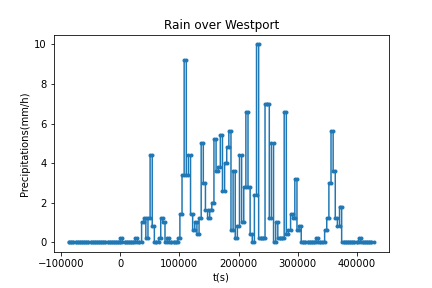

Here, we will use a time serie:

If the data is given in "rain height", a post-processing to turn it in rain intensity will be needed (at least at this stage of development).

Using the rain on grid forcing will activate all the cells of the domain and will increase the computational time of the simulation. Part of the domain can be "de-activate" (the blocs memory will not be allocated for this area) using different methods:

using the x0 / xmax / y0 / ymax keywords to restrain the extend of the computational domain (but still rectangular)
```
x0=1475000; #m
```
a manual mask with values 999 in the bathymetry will be read by the code as "non-active" area
masking all the bloc with all cells having an elevation superior to some value:
```
mask=250; #m
```
using a shape file to define a "area of interest":
```
AOI=Domain_buffered-sea2.gmt;
```

Method advised

The last method, consisting in using a contour to identify the area we want to include, is advised as the method allows for example to select a catchment, or any complex contour shape. The expected shape is a *.gmt file that can be generated from a contour using GMT tools or directly as a column of x,y points looped (first point = last point).

Refining the grid in area of interest

The code is based on a Block-uniform quadtree mesh. Each block, actually a 16 by 16 cells, is one unit of computation in the GPU. These blocks can have different resolutions (but resolution does not change during the computation at this stage).

The initial resolution of the grid is the resolution of the bathymetry/topographic data. To refine or coarsen the grid, you can weather use the "dx" key word and choose a new resolution for the whole domain; wether use the levels of resolution. The reference level, correponding to the bathymetry resolution will be the level 0. Levels of resolution are then defined in relation to the reference levels using positive integers to increase the resolution or refine and negative integer to coarsen the grid by a multiple of two. For a given level $n$ , the resolution $dx_n$ will be: $$ dx_n=\frac{dx_0}{2^n} $$

with $dx_0$ the resolution at level 0.

When refinning using the level implementation, different key words are expected:

Initlevel: level used to create the first mesh created by the code in the mesh refinement process
Maxlevel: maximim level of refinement (over-ruling other commands)
Minlevel: minimum level of refinement (over-ruling other commands)

The grid can also be unregular with an adaptition of the grid to the model (variables at initialisation step or user-defined refinement map). In this case, the cells will be devided in 4 cells for refinement, or 4 cells merged in one for coarsening. The code will ensure a progressive change of resolution (no cell should have a neighbour with more than 1 level of resolution of difference.)

The different methods of refinement available in the code are called using the key word "Adaptation". The refinement can be based on a classical input variable or a variable calculated during the initialisation:

Threshold: impose a threshold for a different level of resolution
Inrange: impose a range for a different level of resolutuion or it can be defined using a map of target levels for refinement:
Targetlevel: the levels of resolution will be targeted but will be overruled by the maxlevel, minlevel entrance.

To refine the grid for this case, we will use the former coarse simulation and create a map for values where hmax is strictly positive (and/or $umax$,$vmax$ different from zero), after removing the sea area.

Here, the bathymetry map resolution is a 10m resolution ($dx=10m$). We will impose:

a level -3 resolution ( $dx_{-3}=80m$) in the background domain,
a level 1 resolution ( $dx_1=5m$) in the flooded area
a level 2 resolution ( $dx_2=2.5m$) in the main river bed area.

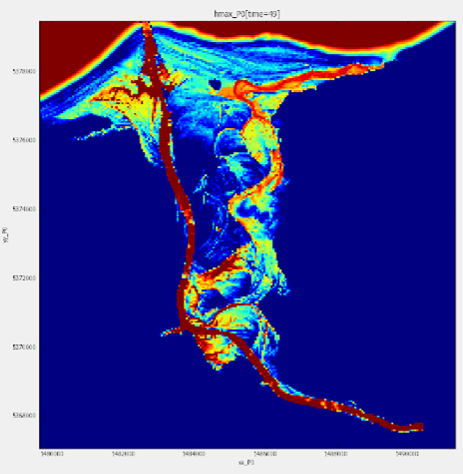

coarseRun — Maximum water depth obtained using a coarse uniform mesh, used to inform refinement.

Refinement map obtained based on coarse model, used to enforce refinement.

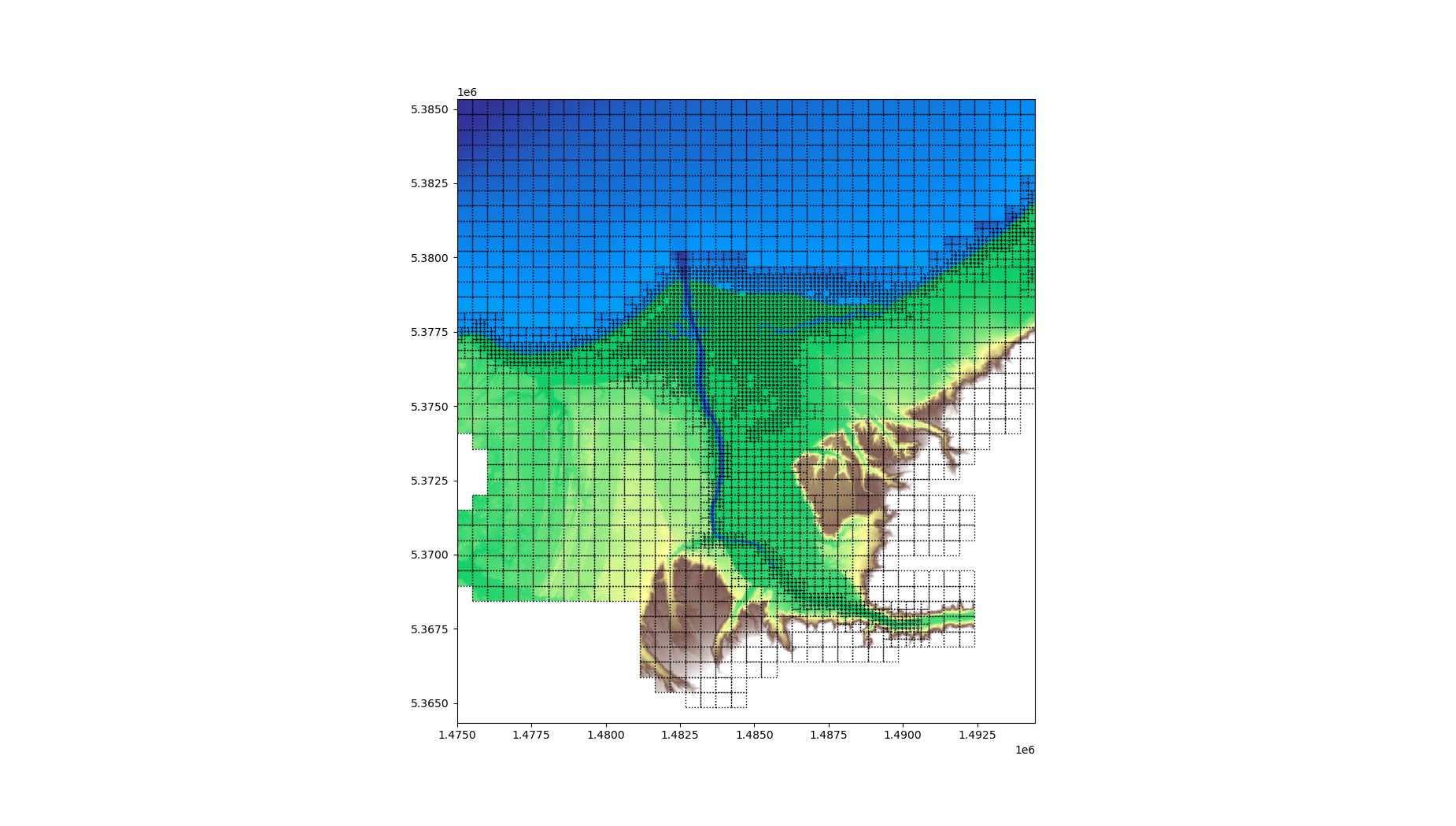

meshrefine — Mesh refinement generated by the code.

To use it, the following options need to be added to the param file:

initlevel = -3 ;
maxlevel = 2 ;
minlevel = -3 ;
Adaptation = Targetlevel,refin_mask.nc?z ;

Note

In order to optimise the results when using a refined grid, different bathymetry files can be provided. A higher resolution one with smaller extend can be provided as a second DEM and will be use by the code when refining the grid (the code will use the last entered, having the info available):

DEM = Wesport_DEM_8m.nc?z;
DEM = Wesport_DEM_2m_zoomed.nc?z;

Similarly, different input files can be used for the roughness coefficient.

Note again ...

The code also allows for zone outputs: the output of different zones defined by the user (output-file-name,x1,x2,y1,y2):

outzone=zoomed.nc,5.3,5.4,0.5,0.8;

Results:

This is the logfile:

BG_log.txt

#################################
BG_Flood v0.8
#################################
#################################
#
model started at 21-02-2023 21:22:53

Reading parameter file: BG_param.txt ...

Reading bathymetry grid data...
Reading forcing metadata. file: Westport_DEM_8m.nc extension: nc
Forcing grid info: nx=2604 ny=3137 dx=8.000000 grdalpha=0.000000 xo=1474101.125000 xmax=1494925.125000 yo=5364343.000000 ymax=5389431.000000

Reading boundary data...

Read Roughness map (cf) data...
Reading forcing metadata. file: z0_100423_rec3.asc extension: asc
For asc of bathy file please specify grdalpha in the BG_param.txt (default 0)
Forcing grid info: nx=1724 ny=2420 dx=4.800000 grdalpha=0.000000 xo=1480847.600000 xmax=1489118.000000 yo=5369291.600000 ymax=5380902.800000

Read Target level data...
Reading forcing metadata. file: refin_mask.nc extension: nc
Forcing grid info: nx=624 ny=400 dx=50.000000 grdalpha=0.000000 xo=1469074.407363 xmax=1500224.407363 yo=5364597.770576 ymax=5384547.770576

Preparing rivers (1 rivers)

Preparing Rain forcing

Adjusted model domain (xo/xmax/yo/ymax):
    1474097.125000/1495057.125000/5364339.000000/5389459.000000
     Initial resolution (level 2) = 10.000000
There are 1 GPU devices on this machine
Using Device: NVIDIA T500

Initializing mesh
    Initial number of blocks: 20567; Will be allocating 21596 in memory.

Initial condition:
    Warm start
    Initializing rivers
Adapting mesh
     Iteration 1
        There are 20567 active blocks (21596 blocks allocated in memory), 0 blocks to be refined, 4723 blocks to be coarsen (with neighbour); 1675 blocks untouched; 14169 blocks to be freed (1029 are already available) 0 new blocks will be created
     Iteration 2
        There are 6398 active blocks (21596 blocks allocated in memory), 0 blocks to be refined, 1023 blocks to be coarsen (with neighbour); 2306 blocks untouched; 3069 blocks to be freed (15198 are already available) 0 new blocks will be created
     Iteration 3
        There are 3329 active blocks (21596 blocks allocated in memory), 0 blocks to be refined, 179 blocks to be coarsen (with neighbour); 2613 blocks untouched; 537 blocks to be freed (18267 are already available) 0 new blocks will be created
     Iteration 4
        There are 2792 active blocks (21596 blocks allocated in memory), 0 blocks to be refined, 18 blocks to be coarsen (with neighbour); 2720 blocks untouched; 54 blocks to be freed (18804 are already available) 0 new blocks will be created
     Iteration 5
        There are 2738 active blocks (21596 blocks allocated in memory), 0 blocks to be refined, 1 blocks to be coarsen (with neighbour); 2734 blocks untouched; 3 blocks to be freed (18858 are already available) 0 new blocks will be created
     Iteration 6
        There are 2735 active blocks (21596 blocks allocated in memory), 0 blocks to be refined, 0 blocks to be coarsen (with neighbour); 2735 blocks untouched; 0 blocks to be freed (18861 are already available) 0 new blocks will be created

Initial condition:
    Warm start
    Initializing rivers
Setting up GPU

Model setup complete
#################################
Initialising model main loop
Create netCDF output file...
Warning! Output file name already exist
New file name: Results_tuto_basicRun_2.nc
        Completed
Model Running...
Output to map. Totaltime = 7200.000000 s; Mean dt = 2.230207e-01 s

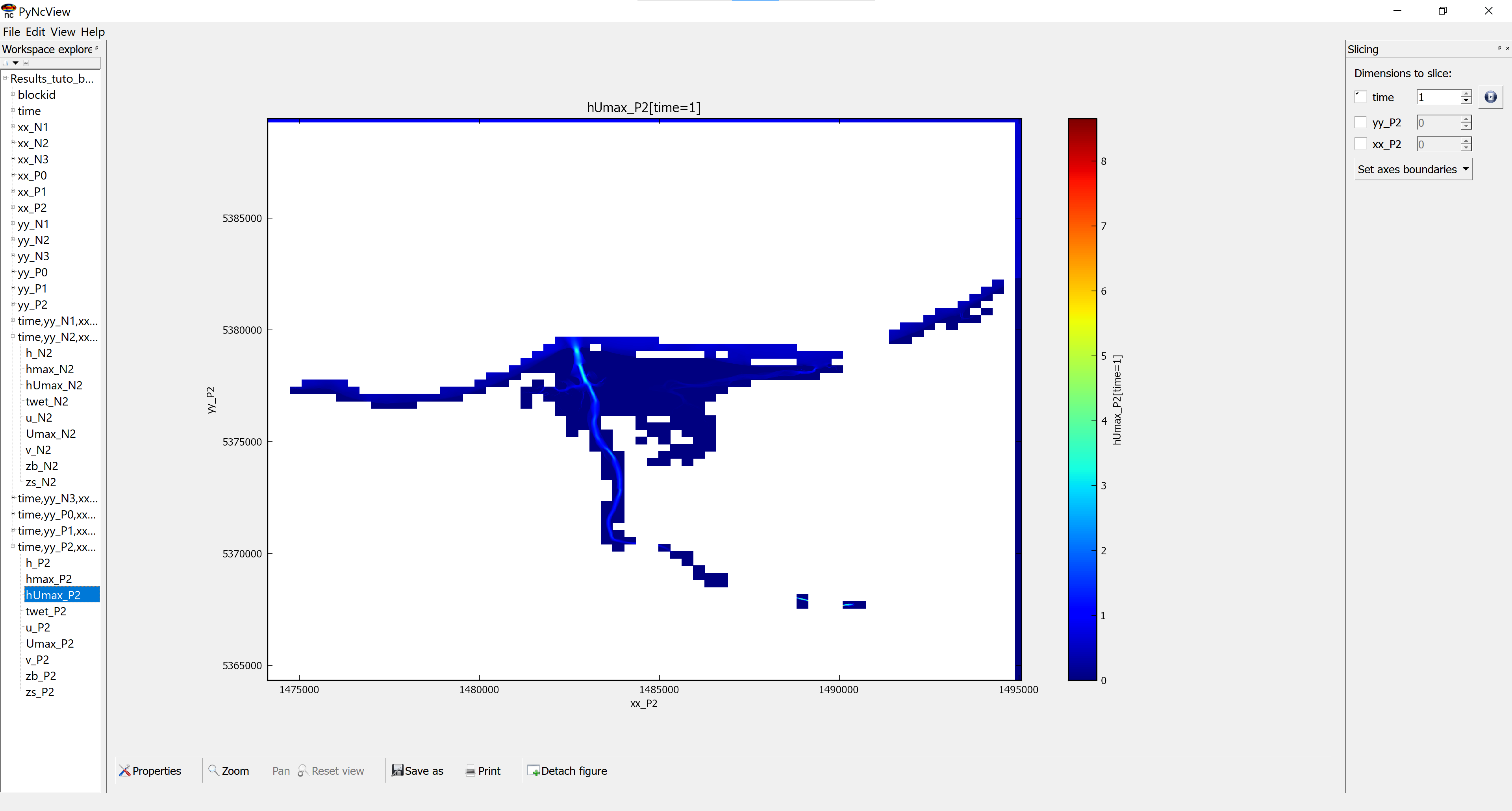

In the model output, each resolution is store independently. When open with pyncview, we can visualise each layer. QGIS can merge all these layer togather or a postratement steps will be needed.

How to incorporate more complex inputs

Some more complex inputs can be used in this type of realistic model:

Date as time reference

Up to here, the time was define as a duration in second from an arbitrary reference (begining of the simulation for example). All the inputs and the BG_param.txt file used this definition. Due to this convention, most of the inputs had to be modified to change date to duration in seconds, and the resluts are also in second (which can be confusing). The solver can use dates in the inputs (same time zone for all dates) and in the BG_param.txt, as:

reftime = 2018-02-16T01:00:00

starttime = 2018-02-16T02:00:00

outputtimestep = 3600.000000

endtime = 2018-02-18T17:00:00

where:

reftime is the reference time for the simulation
time convention is : $yyyy-mm-dd\textbf{T}hh:mm:ss$

Map boundary conditions

To improve the boundary forcing, there is possibility to use a netcdf file associated to contours to define the boundary based on a time evolving 2D surface. It can be use to impose water elevation to impose tide or any open-water forcing for example, specially in a nested configuration.

bndseg = tidebndpoly.bnd,tidebnd.nc,3;

bndtaper = 7200.000000

where: - tidebnb.nc is a 2D time varying map of water surface elevation. - 3 is the type of boundary (absorbing boundary). - tidebndpoly.bnd is a polygon where the boundary is applied - bndtaper is the duration of the relaxation of the boundary ($s$)

As mention earlier, the computationnal domain can be define (or more specifically reduce from default DEM based domain) using an "aoi" (area of interest) which consist in a looped list of points. The boundary by default along it is a wall but can be modified by the following parameter aoibnd:

aoi = aoi_BGFLOOD.txt

aoibnd = 3;

Multi DEM/roughness inputs

The code support different inputs of DEMs or roughness maps. It will use the first DEM to define the computational extend by default. Then, for each grid point, it will use the last DEM provided where a valide value is defined at this location. One can for example provide a low resolution DEM of all the domain then add a high resolution of a given urban area if higher resolution will be sought after there. Similar set-up is also allowed for roughness maps.

# DEM for the full domain, 8m resolution
topofile = geofabric_8m_rupp_and_smart.nc?z;

# DEM for the urban center, 2m resolution
topofile = geofabric_2m_town.nc?z;

Multi river injection

Any number of river injection can be added (tested up to a thousand). Just repeat the river injection line as many times as needed.

Full BG_param.txt file

##########
# DEM    #
##########

# DEM for the full domain, 8m resolution
topofile = geofabric_8m_rupp_and_smart.nc?z;

# DEM for the urban center, 2m resolution
topofile = geofabric_2m_town.nc?z;


xmin = 1465335.000000
xmax = 1497847.000000
ymin = 5351567.000000
ymax = 5388175.000000
aoi = aoi_BGFLOOD.txt
dx = 64.000000

##############
# Forcing    #
##############

zsoffset = 0.000000
zsinit = -1.000000
frictionmodel = 1
cfmap = Roughness.nc?zo

rainfile =outputrain_test.nc?depth

##########
# Rivers #
##########




###############
# Adaptation  #
###############

initlevel = 0
Adaptation = Targetlevel,refine_mask_town.nc
minlevel = 0
maxlevel = 4

################
# Boundaries   #
################

aoibnd = 3;
bndseg = tidebndpoly.bnd,tidebnd.nc,3;

#############
# Timing    #
#############

bndtaper = 7200.000000

reftime = 2018-02-16T01:00:00

starttime = 2018-02-16T02:00:00

outputtimestep = 3600.000000

endtime = 2018-02-18T17:00:00

#############
# Others    #
#############

gpudevice = 0

vmax = 10.000000

#############
# Output    #
#############

smallnc = 0

savebyblk= false

outvars = zs, u, v, h, hmax, zsmax, U, hUmax, Umax;

outfile = Westport_Inundation.nc

Note

This is a real configuration run that would take about 15h on a A100 GPU. Not to be run on laptop GPU, but can be tested locally with decreased resolution (dx)

Ground infiltration losses (Basic ILCL model)

An Initial Loss, Continuous Loss model has been implemented in the code (see ILCL page).

To use it, provide maps for the two coefficient as follow:

initialloss=InitialLoss.asc;
continuousloss=ContinuousLoss.asc;

NetCDF files can also be used for these inputs.
